Pekanbaru Battery Kering Vrla/Aki Kering Vrla/Battery Ups Merk Smt 12V 12Ah Smt1212 - Smt 6-Dzf-12 2Hr Original Smt Power

SAMOTO Battery 12V 12AH Baterai Aki Kering Ups Mobil Mainan SMT1212

Untuk Skuter, Sepeda Listrik, dan UPS Berbagai Merk.

-----------------------SMT1212 Specification----------------------

- Nominal Voltage : 12V
- Nominal Capacity : 12Ah

- Dimension :
Length = 151 mm
Width = 98 mm
Height = 96 mm
Total Height (with Terminal) = 103 mm

- Approx. Weight : Approx ± 3.275 Kg
Terminal : T1/T2
Container Material : ABS

- Rated Capacity :
12.0 AH/0.60A – (20hr, 1.80V/cell,25°C/77°F)
11.2.0 AH/1.12A – (10hr, 1.80V/cell,25°C/77°F)
10.2 AH/2.04A – (5hr, 1.75V/cell,25°C/77°F)
9.2 AH/3.06A – (3hr, 1.75V/cell,25°C/77°F)
7.54 AH/7.54A – (1hr, 1.60V/cell,25°C/77°F)

- Max. Discharge Current : 180A (5s)
- Internal Resistance : Approx 17m

- Operating Temperature Range :
Discharge = -15~50°C(5~122°F)
Charge = 0~40°C(32~104°F)
Storage = -15~40°C(5~104°F)

- Nominal Operating Temperature Range : 25 ± 3°C (77±5°F)
- Cycle Use : Initial Charging Current less than 3.6A. Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C
- Stand by Use : No limit on initial Charging Current Voltage 13.5V~13.8V at 25°C(77°F) Temp. Coefficient -20mV/°C

- Temperature :
40ºC (104ºF) = 103%
25º (77ºF) = 100%
0º (32ºF) = 86%

Self Discharge :SMT Power battery may be stored for up to 6 months at 25ºC(77ºf) and battery should be recharge before use. For higher temperatures the time interval will be shorter

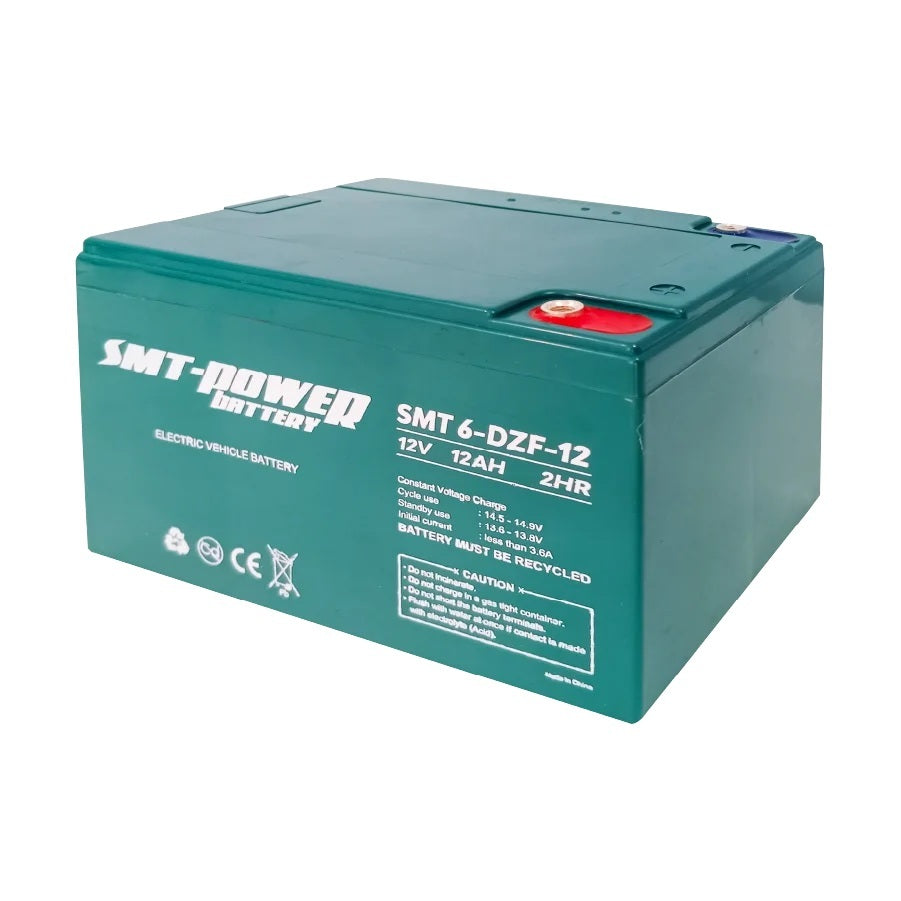

------------------------SMT 6-DZF-12 Specification---------------------------
- Volts 12V

- Capacity (25°C)
3 hours rate (4.0A) = 13Ah
5 hours rate (2.8A) = 14.5Ah
10 hours rate (1.2A) = 16Ah
20 hours rate (0.7A) = 18Ah

- Operating Temperature Range
Discharge = -35°C(-31°F)~50°C (122°F)
Charge = -15°C(5°F)~40°C (104°F)
Storage = -15°C(5°F)~40°C (104°F)

- Residual Capacity A er Self Discharge
Capacity A er 2 Months Storage = 85%
Capacity A er 3 Months Storage = 82%
Capacity A er 6 Months Storage = 80%

- Charge (Constant Voltage)
Cycle (25°C) = Initial Charging Current Less Than 6A Voltage 14.5~14.9v
Stand by (25°C) = Charge Voltage 13.6~13.8

- Terminal Size D7
- Terminal Type O
- Product Dimension 151(L) x 99 (W) x 99 (T) x 99 (TH) mm
- Unit Box Dimension –
- Product Weight ± 4.2 kg /-
- Quantity per Carton 4 pcs
- Weight per Carton ±17.2 kg
- Carton Dimension 315 x 220 x 135 mm
